Load Bar Plug Replacement

This article applies to Optiweigh units with Serial Numbers between 306 and 473. These units had faulty load bar plugs.

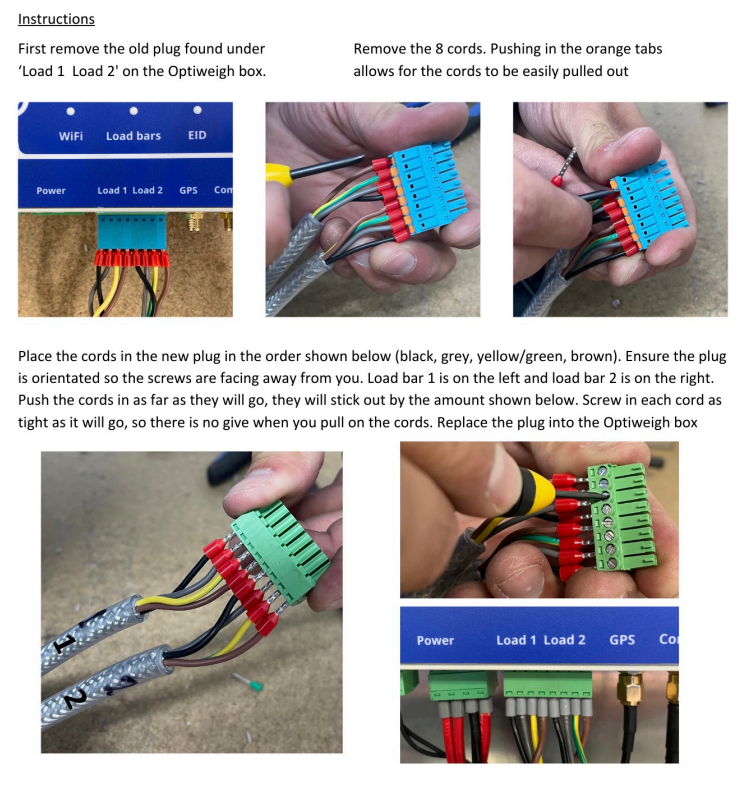

Once you have received your new load bar plugs from us follow these instructions to change them over.
